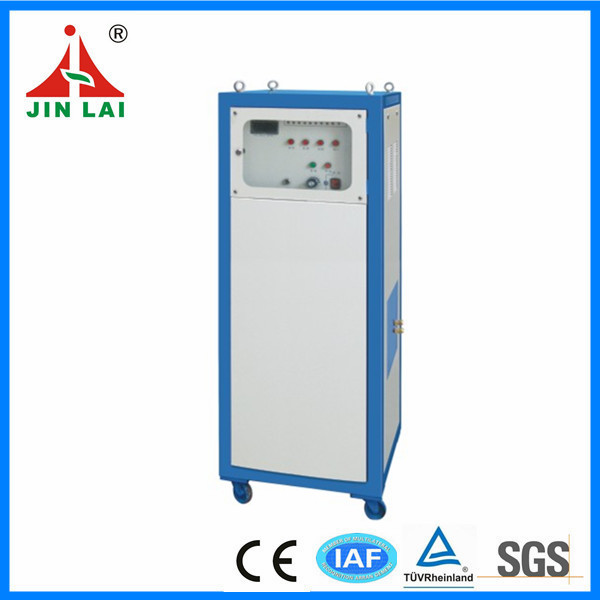

Home JLZ-260KW
Main Feature:
  • Big power, low frequency and good diathermancy.
  • High frequency, low power consumption, easy installation and simple operation.
  • It can continuously work for 24 hours for the comprehensive full load design.
  • It adopts the IGBT inverter circuit in parallel connection, which ha high load adaptability.
  • It has functions as over-voltage, over-current, over-heat, phase loss and water shortage alarm indications as automatic control and protection.
  • Compared with other heating models, it can significantly promote the economic benefits, improve the quality of heated work pieces, save the energy and material, alleviate labor intensity and improve the production environment.

Technical Parameters:

Model JLZ-260KW
Input power desire 3 phase 380V
Oscillate power max 260KW
Max input current 320A
Oscillate frequency 0.5-10KHZ
Cooling water desire >0.6MPa  6L/Min
Duty cycle 100% 40°C
Net weight
870*850*1800mm 560*350*550mm
350kg 550*300*420mm
Cable length 2-6(Meters)
