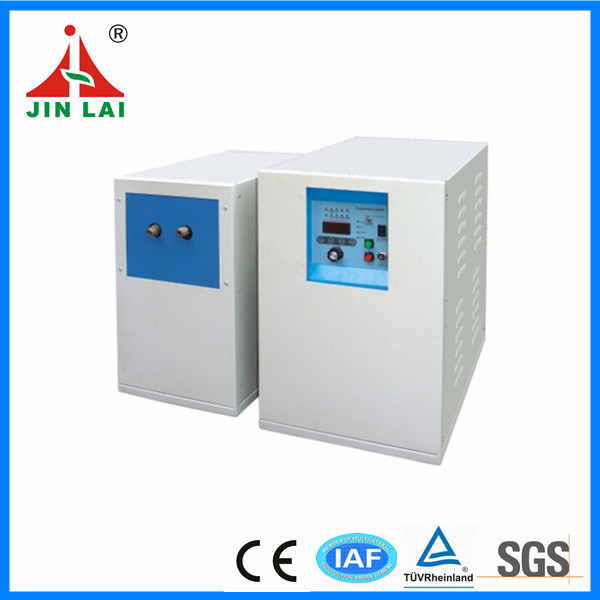

JLZ-35KW
Main Feature:
  • Big power, low frequency and good diathermancy.
  • High frequency, low power consumption, easy installation and simple operation.
  • It can continuously work for 24 hours for the comprehensive full load design.
  • It adopts the IGBT inverter circuit in parallel connection, which ha high load adaptability.
  • It has functions as over-voltage, over-current, over-heat, phase loss and water shortage alarm indications as automatic control and protection.
  • Compared with other heating models, it can significantly promote the economic benefits, improve the quality of heated work pieces, save the energy and material, alleviate labor intensity and improve the production environment.

Technical Parameters:

Model JLZ-35KW
Input power desire 3 phase 380V 50/60HZ
Oscillate power max 35KW
Max input current 51A
Oscillate frequency 1-20KHZ
Cooling water desire >0.3MPa  4L/Min
Duty cycle 100% 40°C
Dimensions Generator 620*550*860mm
Transformer 620*480*500mm
Net weight 43kg/50kg
Cable length 2-6(Meters)
