Home JLC-50KW

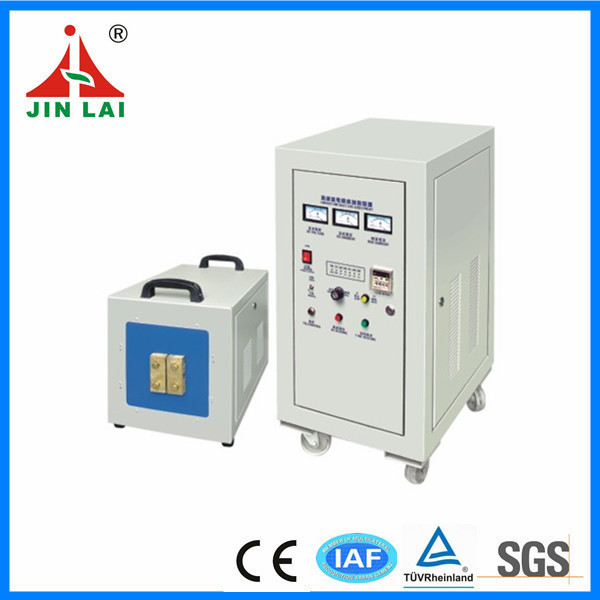

JLC-50KW
Main Feature:
  • It adopts the IGBT inverter circuit in parallel connection, which has high load adaptability.
  • The comprehensive full load design is available for 24-hour continuous operation.
  • The digital phase locked realizes following frequency automatically.
  • Design in modules. It is installed facility and use conveniently without debugging..
  • The perfect protection function, insuring the reliability and easily maintaining of the equipments.
  • The technique of converting frequency by resonance promotes efficiency of whole equipment by over 95%.
  • Economy and environment protection, it can replace of gas/coal/electronic tube induction heating machine.


Technical Parameters

Model JLC-50KW
Input power desire 3 phase 380V 50/60HZ
Oscillate power max 50KW
Max input current 63A
DC current 80A
Oscillate frequency 10-30KHZ
Timing 1M-99.99M
1S-99.99S
0.01S-99.99S
Cooling water desire 0.3Mpa
Duty cycle 100% 40°C
Dimensions(L*W*H) Generator 510*540*980mm
transformer 450*330*500mm
Net weight 65kg/45kg
Cable length 2-6(Meters)
