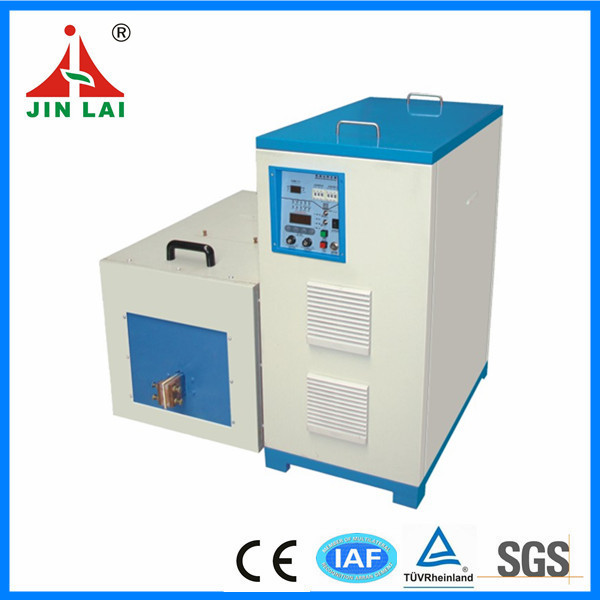

Home JL-80KW
Main Feature:
  • It adopts the most advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency.
  • It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficiency and fast heating and bring into play the superior performance of the products.
  • About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
  • It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
  • It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.

Technical Parameters

Model JL-80KW
Input power desire 3 phase 380V  50/60HZ
Oscillate power max 80KW
Max input current 105A
Oscillate frequency 30-80KHZ
Cooling water desire 0.5Mpa≥6L/MIN
Duty cycle 100% 40°C
Dimensions(L*W*H) Generator 750*460*870mm
Transformer 950*450*500mm
Net weight 80kg/85kg
Cable length 2-6(Meters)
