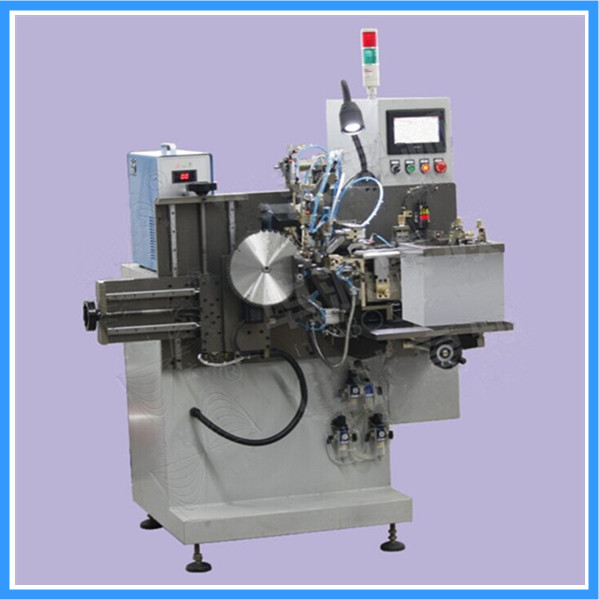

Automatic Saw Blade Brazing Machine

Technical Parameters:
Diameter of saw blade： Φ100 - Φ800mm
Diameter of saw blade inner bore ： Φ12 - Φ50mm（can be customized）
The max. welding speed：5s/segment
Length of alloy：3.0 - 13.0mm
Width of alloy：1.5 - 7.5mm
Thickness of alloy：>1.5mm
Working voltage：single phase 220V 50HZ
Power ：6.5KW
High frequency generator：6KW
Solder: soldering wire (the length can be adjustable, accuracy is 1mm )
Dimensions: length 1450mm * width 1050mm * height 1650mm
Weight：350Kg

Main Feature:
Automatic for tooth choosing, feeding and centring in brazing process
Accuracy of centring is 0.01mm, firm welding, stable quality.
New type feeding system with rotary disk
Top non-contact temperature measurement equipment, which can realize precise control.
Automatic temperature control, can adjust the annealing process precisely, all kinds of special brazing can be met
Word widely brand electric components to ensure work continuously for 24 hours.
English operation interface, easy to learn and use, can be designed according to customers’ requirements.

Working Theory:
