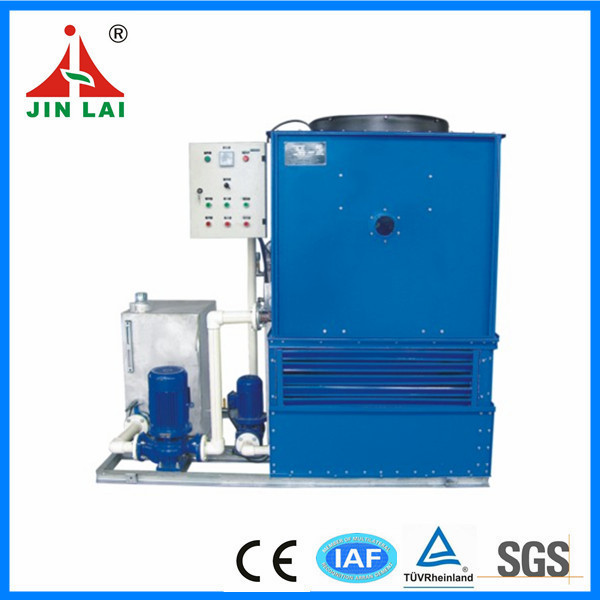

Water Cooling Tower


Cooling tower features:


1) Good shape with small outside size, light weight
2) Optimum structure
3) The cooling tower body is made of FRP, which is anti-aging, anti-corrosion, without fading and distortion
4) Min. Noise: The lowest noise blower and unique noise elimination technology is adopted to reduce the noise to a minimum level
5) with reliable operation: All steel structure brackets are galvanized and corrosion resistant. The usage life is twice longer compared with similar products
6) Simple operation and maintenance: CTNC intelligent control system is adopted to realize labor free management
7) The angles of all the fans are regulative and axial-flow, which are made of advanced engineering plastics.
8) All the motors are sealed, which can be used in the severe weather and circumstances.

 9) The casing and water plate of the cooling tower are made of fiberglass, which will not be corroded, and no painting is needed. They can be used for a long time with very low maintenance cost.

10) The radiating film is made of polyvinyl chloride hard and heat-resisting.
The temperature in the water is up to 54. C and the special structure enables the water to touch the film in the biggest area with low air resistance. The energy exchanging efficiency is very high.





Technical Parameters:



Name

Closed circuit cooling tower

Model

CT-55

Cooling capacity

60 KW

Dimension (L*W*H)

2200×1250×2100mm

Net weight

640 KG

Running weight

1100 KG

Loop pump

4 KW   AC380V/50Hz

Spray pump

0.75KW AC380V/50Hz

Fans

1.1KW   AC380V/50Hz
