Home Superaudio Frequency Induction Forging Machine

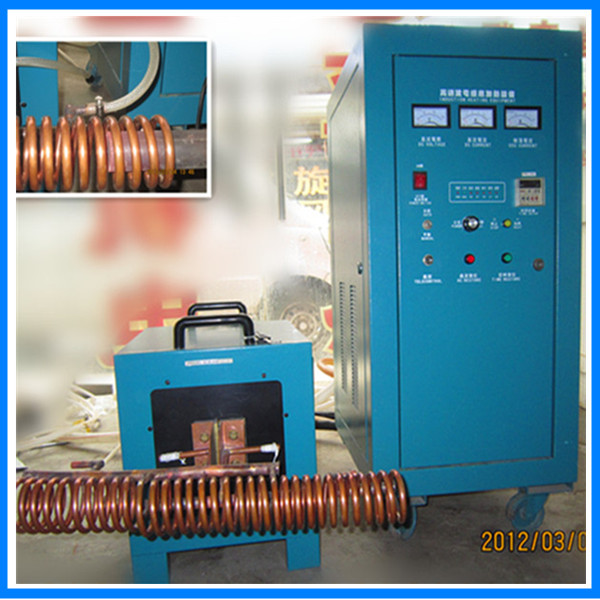

Superaudio Frequency Induction Forging Machine
Main Feature:
1. IGBT inversion technology reduce operating cost
2. The absolute load merit rate design, can work continuously for 24 hours.
3. The digital phase locked realizes following frequency automatically
4. Design in modules It s installed facility and use conveniently
5. The perfect protection function ,insuring the reliability and easily maintaining of the equipments
6. The technique of converting frequency by resonance promotes efficiency of whole equipment by over 95% efficiently
7. Economically ,and environmental protection ,it can replace of the gas/ coal /electronic tube induction heating machine

Technical parameter:
Model JLC-30KW JLC-50KW JLC-60KW JLC-80KW JLC-120KW JLC-160KW JLC-200KW
Input power desire 3 phase 380V 50/60HZ 3 phase 380V 50/60HZ 3 phase 380V 50/60HZ 3 phase 380V 50/60HZ 3 phase 380V 50/60HZ 3 phase 380V 50/60HZ 3 phase 380V 50/60HZ
Oscillate power max 30KW 50KW 60KW 80KW 120KW 160KW 200KW
Max input current 48A 63A 90A 135A 195A 250A 450A
DC current 60A 80A 120A 150A 250A 320A 400A
Oscillate frequency 10-30KHZ 10-30KHZ 10-30KHZ 10-30KHZ 10-30KHZ 10-30KHZ 10-20KHZ
Timing 1M-99.99M
1S-99.99S
0.01S-99.99S		 1M-99.99M
1S-99.99S
0.01S-99.99S		 1M-99.99M
1S-99.99S
0.01S-99.99S		 1M-99.99M
1S-99.99S
0.01S-99.99S		 1M-99.99M
1S-99.99S
0.01S-99.99S		 1M-99.99M
1S-99.99S
0.01S-99.99S		 1M-99.99M
1S-99.99S
0.01S-99.99S
Cooling water desire 0.2Mpa   0.3Mpa   0.3Mpa   0.4Mpa   0.5Mpa   0.5Mpa   0.5Mpa
Duty cycle 100% 40°C 100% 40°C 100% 40°C 100% 40°C 100% 40°C 100% 40°C 100% 40°C
Dimensions
(L*W*H)		 Generator 400*550*810mm 510*540*980mm 550*790*1050mm 830*620*1510mm 900*670*1650mm 900*950*1880mm 400*580*920mm
transformer 420*330*450mm 450*330*500mm 560*430*540mm 730*440*560mm 800*440*580mm 950*650*750mm 450*330*500mm
Net weight 60kg/30kg 65kg/45kg 70kg/45kg 80kg/55kg 110kg/90kg 180kg/110kg 80kg/55kg
Cable length 2-6(Meters) 2-6(Meters) 2-6(Meters) 2-6(Meters) 2-6(Meters) 2-6(Meters) 2-6(Meters)


The whole set including:

1).One Generator , One Transformer;     2). Two induction coils;

3). One foot switch;                     4). One Instruction Manual;

5). One Product certificate of quality;     6). One warranty card


Model Sizes for forging Weight Machine output Customers requirement
JLC-30KW 1.5KG/Min φ16*30 47g 32pcs/min 24-27pcs/min
φ16*35 54g 27pcs/min 23-25pcs/min
φ18*40 80g 18pcs/min 20-23pcs/min
φ20*40 100g 15pcs/min 20-23pcs/min
JLC-50KW 2KG/Min φ22*50 149g 13pcs/min 10-14pcs/min
φ24*60 213g 10pcs/min 8-10pcs/min
φ25*70 210g 8pcs/min 8-10pcs/min
JLC-60KW 2.7KG/Min φ25*70 270g 10pcs/min 8-10pcs/min
φ27*70 315g 8pcs/min 8-10pcs/min
φ28*70 339g 7pcs/min 6-8pcs/min
JLC-80KW 3.8KG/Min φ27*70 315g 12pcs/min 13-14pcs/min
φ28*70 339g 11pcs/min 10-12pcs/min
φ30*60 330g 11pcs/min 10-12pcs/min
φ36*70 559g 7pcs/min 6-8pcs/min
JLC-120KW 4.8KG/Min φ36*70 559g 9pcs/min 8-10pcs/min
φ40*70 619g 7pcs/min 7-9pcs/min
φ42*65 707g 7pcs/min 7-9pcs/min
φ46*65 849g 6pcs/min 6-8pcs/min
φ50*70 1080g 4.5pcs/min 4-6pcs/min
JLC-160KW 8KG/Min φ46*65 849g 10pcs/min 8-10pcs/min
φ50*70 1080g 8pcs/min 8-10pcs/min
φ55*70 1306g 7pcs/min 6-8pcs/min
φ60*80 1777g 5pcs/min 4-6pcs/min
φ65*100 2607g 3pcs/min 3-4pcs/min
φ70*150 4535g 1.5pcs/min 2pcs/min
