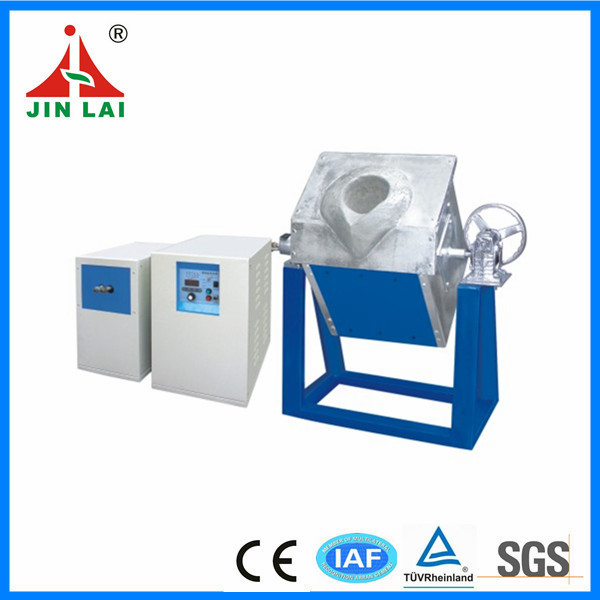

Tilting-type Melting Furnace (JLZ-15/25/35KW)

1.Main parts of the melting furnace system

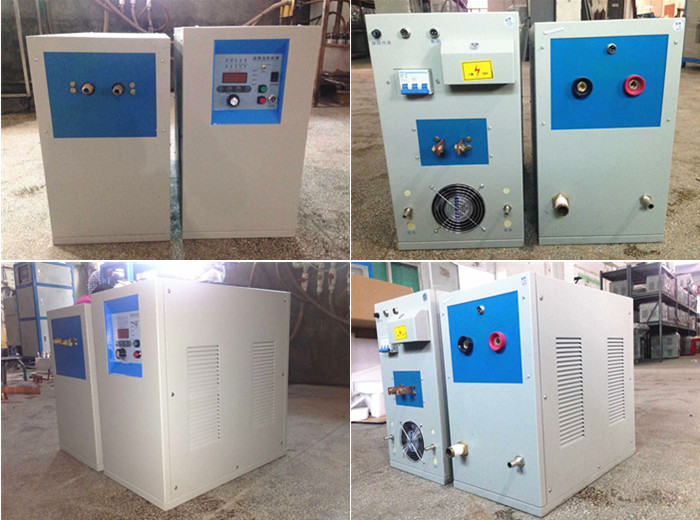

1. M.F Induction Heating Power.
2. Tilting type Melting Furnace.

2. Characteristics of M.F Melting Furnace

Better Heating penetration and even temperature inside the melting metal.
M.F field force can stir the melting pool to achieve better melting quality.
Melting the Maximum quantity by the recommend machine according to above table the melting time is 50-60 minutes, the first melting when the furnace is cold ,and it will take about 20-30minutes for the later melting when the furnace is already hot.
Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, maqnesium, stainless steel.

3.Specifications:

Model		JLZ-15KW	JLZ-25KW	JLZ-35KW
Input power desire		3 phase 380V 50/60HZ	3 phase 380V 50/60HZ	3 phase 380V 50/60HZ
Oscillate power max		15KW	25KW	35KW
Max input current		23A	36A	51A
Oscillate frequency		1-20KHZ	1-20KHZ	1-20KHZ
Cooling water desire		>0.2MPa 3L/Min	>0.2MPa 3L/Min	>0.3MPa 4L/Min
Duty cycle		100% 40°C	100% 40°C	100% 40°C
Dimensions	Generator	560280540mm	560350550mm	620550860mm
Dimensions	Transformer	540280400mm	550300420mm	620480500mm
Net weight		30kg/35kg	32kg/38kg	43kg/50kg
Cable length		2-6(Meters)	2-6(Meters)	2-6(Meters)

4.Machine models and maximum melting ability:(the first cool furnace:50-60mins,the second heated furnace:20-30mins)

Model	Steel ,iron	Copper, Gold , Silver	Aluminum
JLZ-15 15KWMelting Furnace		10KG	3KG
JLZ -25 25KW Melting Furnace	5KG	20KG	6KG
JLZ -35 35KW Melting Furnace	10KG	30KG	10KG
JLZ -45 45KW Melting Furnace	18KG	50KG	20KG
JLZ -70 70KW Melting Furnace	25KG	100KG	30KG
JLZ -90 90KW Melting Furnace	40KG	120KG	40KG
JLZ -110 110KW Melting Furnace	50KG	150KG	50KG
JLZ -160 160KW Melting Furnace	100KG	250KG	100KG

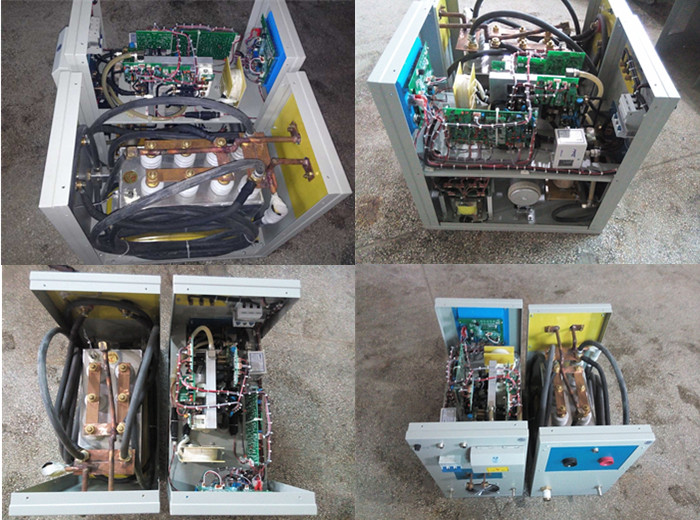

5. Induction Heating Power

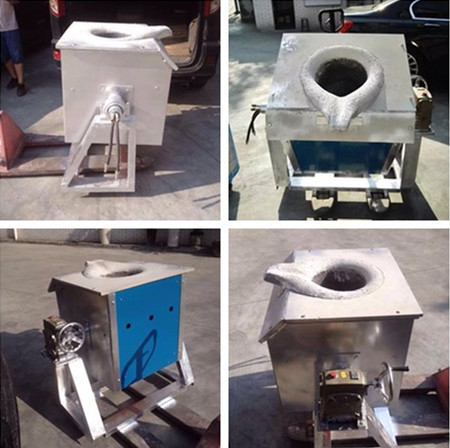

6. Furnace Appearance

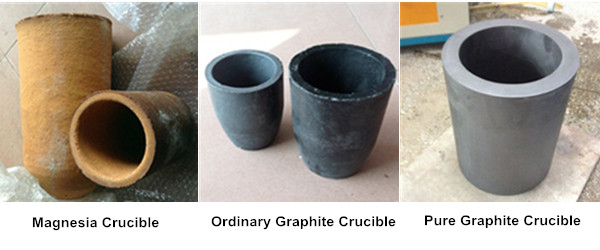

7. Melting Crucible For Reference

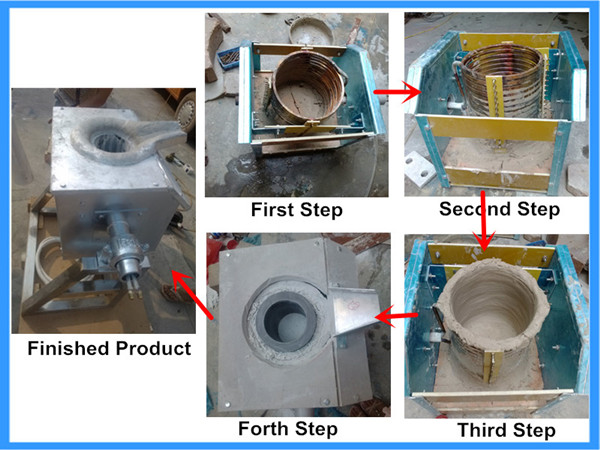

8. Furnace Making Steps
