Home Block-type Melting Furnace

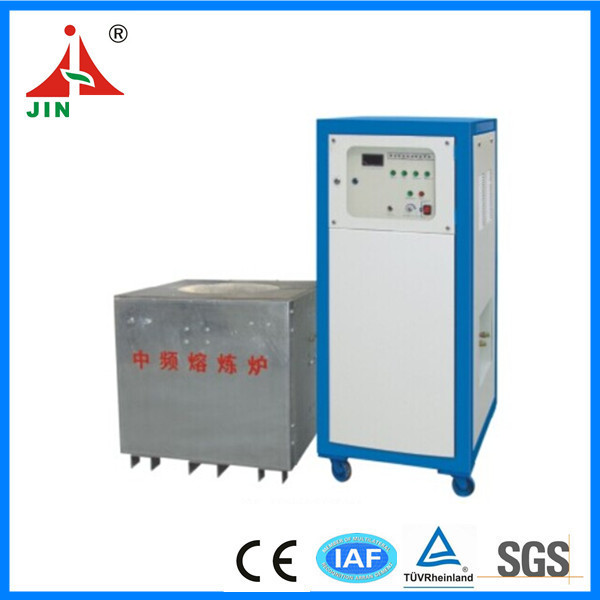

Block-type Melting Furnace

1.Main parts of the melting furnace system:

      1.  M.F Induction Heating Power.
      2.  Block-type Melting Furnace.
2. Characteristics of M.F Melting Furnace


  • Better heating penetration and even temperature inside the melting metal.
  • M.F field force can stir the melting pool to achieve better melting quality.
  • Melting the Maximum quantity by the recommend machine according to above table the melting time is 50-60 minutes, the first melting when the furnace is cold ,and it will take about 20-30minutes for the later melting when the furnace is already hot.
  • Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, maqnesium, stainless steel.



Model Steel ,iron Copper, Gold , Silver Aluminum
JLZ-15 15KWMelting Furnace   10KG 3KG
JLZ -25 25KW Melting Furnace 5KG 20KG 6KG
JLZ -35 35KW Melting Furnace 10KG  30KG 10KG
JLZ -45 45KW Melting Furnace 18KG  50KG 20KG
JLZ -70 70KW Melting Furnace 25KG 100KG 30KG
JLZ -90 90KW Melting Furnace 40KG 120KG 40KG
JLZ -110 110KW Melting Furnace 50KG 150KG 50KG
JLZ -160 160KW Melting Furnace 100KG 250KG 100KG
