Home JL-5KW
Main Feature:
  • It adopts the most advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency.
  • It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficiency and fast heating and bring into play the superior performance of the products.
  • About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
  • It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
  • It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
Technical Parameters

Model JL-5KW
Input power desire Single phase 220V  50/60HZ
Max oscillate power 5KW
Max input current 20A
Oscillate frequency 100-250KHZ
Cooling water desire >0.2MPa  2-6L/Min
Duty cycle 80% 40°C
Dimensions(L*W*H) 500*210*460mm
Net weight 19kg
Cable length 2-6(Meters)

List of Accessories In The Package
Item Name of machine or parts Specification  Amount
1 JL-5 Induction Heater - 1 pc
2 Foot pedal  3 core 1 pc
3 Induction Coils - 2 sets
4 Water Cable - 1 set
5 Instruction Manual - 1 pc
6 Product catalog - 2 sets

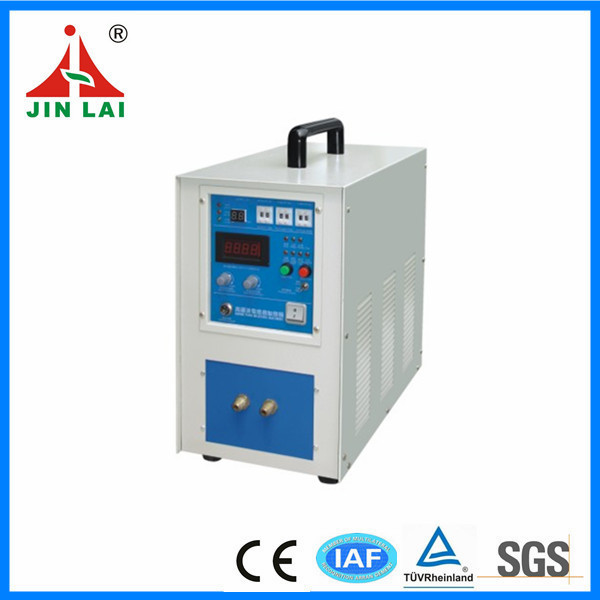

Machine Photo For Reference

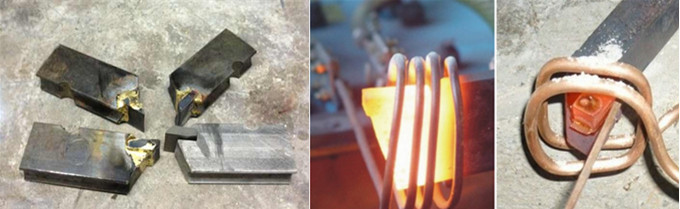

Working Photo For Reference
