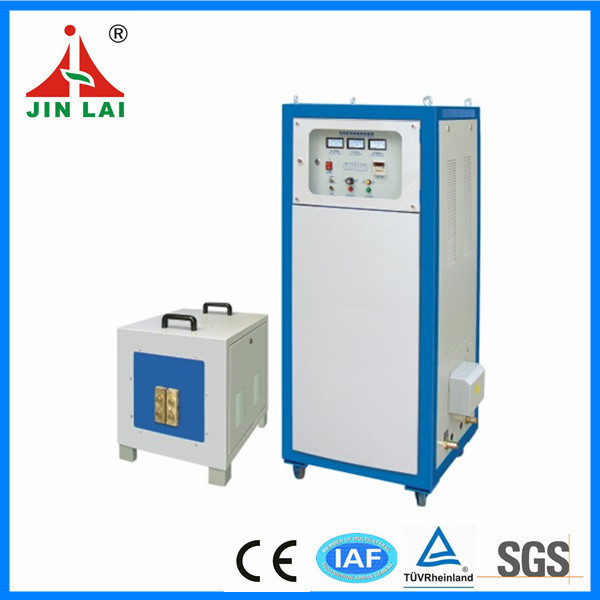

Home JLC-120KW
Main Feature:
  • It adopts the IGBT inverter circuit in parallel connection, which has high load adaptability.
  • The comprehensive full load design is available for 24-hour continuous operation.
  • The digital phase locked realizes following frequency automatically.
  • Design in modules. It is installed facility and use conveniently without debugging..
  • The perfect protection function, insuring the reliability and easily maintaining of the equipments.
  • The technique of converting frequency by resonance promotes efficiency of whole equipment by over 95%.
  • Economy and environment protection, it can replace of gas/coal/electronic tube induction heating machine.

Technical Parameters

Model JLC-120KW
Input power desire 3 phase 380V 50/60HZ
Oscillate power max 120KW
Max input current 195A
DC current 250A
Oscillate frequency 10-30KHZ
Timing 1M-99.99M
Cooling water desire 0.5Mpa
Duty cycle 100% 40°C
Dimensions(L*W*H) Generator 830*620*1510mm
transformer 730*440*560mm
Net weight 110kg/90kg
Cable length 2-6(Meters)
