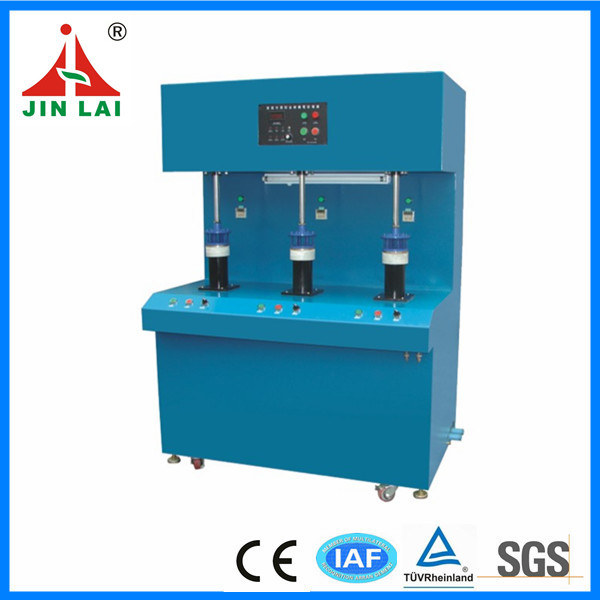

Heat Plate Brazing Machine( Three working position)

Main characteristics:

Brazing Machine uses the high power IGBT high frequency machine to provide heating power and the pneumatic system as the drive.
It has such features as stable operation, precise control, easy operation and high rate of products meeting standards, which is the most ideal equipment for manufacturing on new generation of electric heating stainless steel kitchen utensil.
It is applicable to the welding of such electric heating products as electric heating pan, hot-water kettle, frying pan and coffee pot, which can make the stainless steel plate, aluminum sheet and tubular electric heating element of different shapes and thickness form an integral part through one-off metal braze welding.

Specifications:

Model	JL-120	JL-140	JL-160
The input voltage	3 phases 380V 50/60HZ
The output fluctuating power	30-100KHZ	30-100KHZ	30-80KHZ
The show current	1000A	1500A	1800A
The max diameter	50-130mm	50-160mm	50-200mm
The air pressure	0.2-0.5mpa	0.2-0.5mpa	0.2-0.5mpa
The voltage of cooling water	0.3mpa	0.3mpa	0.3mpa
The temperature of cooling water	< 40º C	< 40º C	< 40º C
Dimensions	Three working position 950x1300x1900 Six working position 1400x1400x1900
Weight	250kg/500kg	320kg/560kg	400kg/650kg
