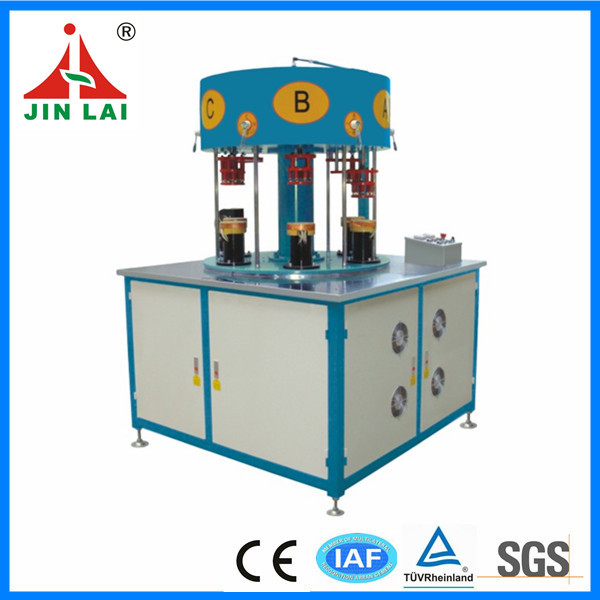

Heat Plate Brazing Machine(Six working position)
Main characteristics:
  • Brazing Machine uses the high power IGBT high frequency machine to provide heating power and the pneumatic system as the drive.
  • It has such features as stable operation, precise control, easy operation and high rate of products meeting standards, which is the most ideal equipment for manufacturing on new generation of electric heating stainless steel kitchen utensil.
  • It is applicable to the welding of such electric heating products as electric heating pan, hot-water kettle, frying pan and coffee pot, which can make the stainless steel plate, aluminum sheet and tubular electric heating element of different shapes and thickness form an integral part through one-off metal braze welding.

Model JL-120 JL-140 JL-160
The input voltage 3 phases 380V 50/60HZ
The output fluctuating power 30-100KHZ 30-100KHZ 30-80KHZ
The show current 1000A 1500A 1800A
The max diameter 50-130mm 50-160mm 50-200mm
The air pressure 0.2-0.5mpa 0.2-0.5mpa 0.2-0.5mpa
The voltage of cooling water 0.3mpa 0.3mpa 0.3mpa
The temperature of cooling water < 40º C < 40º C < 40º C
Dimensions Three working position 950x1300x1900
Six working position 1400x1400x1900
Weight 250kg/500kg 320kg/560kg 400kg/650kg
