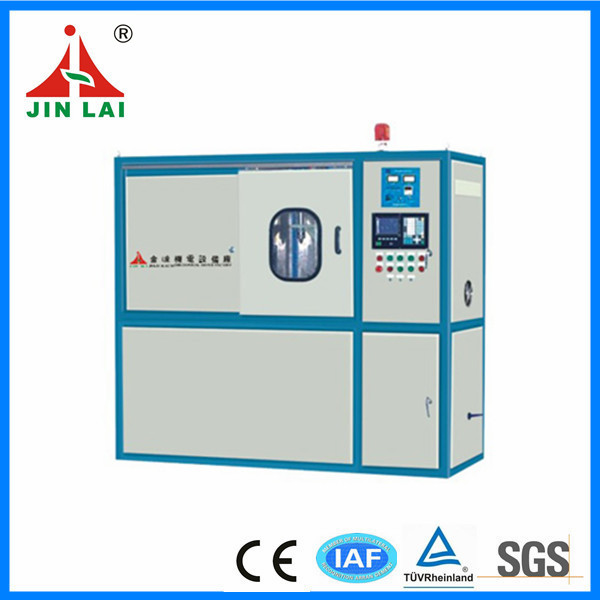

Column Movable Servo CNC Quenching Machine

The quenching machine mainly uses digital control system, the stepper motor drive spindle motor with variable frequency, design of human nature.

Small size, low failure rate, human-machine interface+ manual programming, convenient and reliable operation, easy to learn. This product include fully enclosed and semi-enclosed sub(it can be customized according to user needs). I t is applied to the shaft of processing demanding, rodents, and irregular parts of quenching (such as a variety of shaft, screw, gear, driving wheel, crank, the long axis of the bearing position, plates and other relevant parts)


Main Feature

1. Quenching time is short, parts of the HRC value can be adjusted.
2. The workpiece rotation set any speed of any interval to meet the coaxial diameters different.
3. Quenching range size accurately.
4. Part layer deep meet the technical requirements, similar to non-oxidative quenching (if required can also be quenched in the protective atmosphere).
5. Low quenching deformation.
6. Reproducible well in the process.
7. Easy to quench multiple local of workpiece.



Technical Parameter

Model JL500 JL1000
Travel 0-500 0-1000
Torque 20N. M 36N. M
Spindle speed 0-1000r/min 0-1000r/min
Max. diameter of  workpiece 0-300mm 0-50mm
Workpiece weight 100 200
Cooling Method Spray quenching Spray quenching
Dimensions(mm) 2050x800x1800 3100x1000x2500
Weight 900 1500
